Hochrhein-Center in Rheinfelden Relies on MSR-Traffic

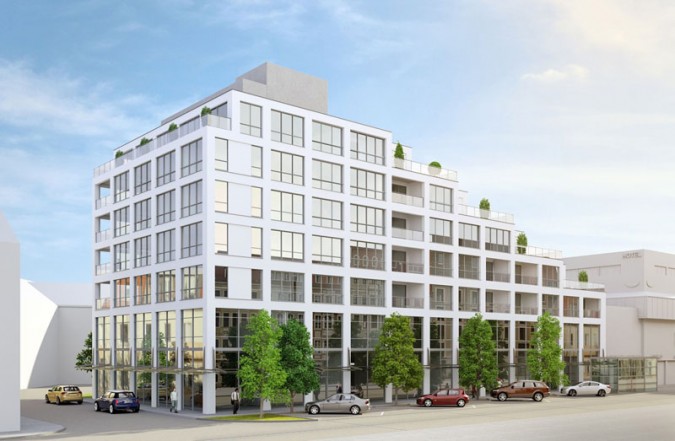

Hochrhein-Center II (HRC II) follows Hochrhein-Center (HRC I), the well-known shopping center in Rheinfelden/Baden. Whether shopping, service, wellness or enjoyments, since July 2014 the HRC I has been offering a wide range of shopping opportunities with an attractive mix of specialist shops in the city center of Rheinfelden.

The opening of HRC II is now imminent. In addition to 30 flats, which are available on the 2nd–6th floor, there is a connecting level to the shopping mile HRC I, a few trade areas and an underground car park, which is equipped with an intelligent parking guidance system from MSR-Traffic.

An intelligent parking guidance system means rapid guidance for people looking for a parking space by means of the LED residual space display of free parking spaces. Live data on the parking situation enables drivers to make intelligent directional decisions at any time. Dynamic traffic in the underground car park also results in lower CO2 emissions and, at the same time, increases the economic efficiency of the parking areas.

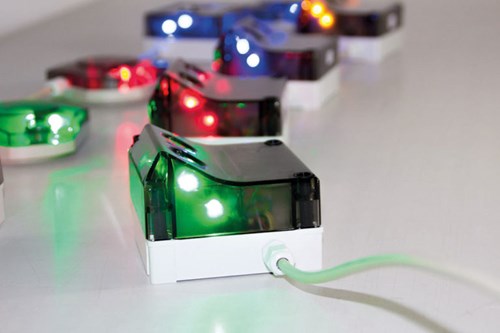

Single Space Detection With Ultrasonic Sensors (Type CROSS)

The ultrasonic sensors from MSR-Traffic, including colored status LEDs, enable precise counting and single place detection of vehicles. Five ultra-bright LEDs per color indicate the status of the parking space. The sensor and LED display are located within one housing. Mounting of the single space sensors as well as of the counting sensors is done under the ceiling. Compared to conventional measurement techniques, MSR-Traffic sensors are robust, very durable, and provide precise measurement results at all times. The turnkey system is individually configured and installed extremely quickly on-site.

Real-Time Data Transfer With the Parkgard® Control Center (PGCC) From MSR-Traffic

The PGCC leaves nothing to be desired in terms of device monitoring and control. It is used to control, visualize, and manage one or more parking guidance systems from MSR-Traffic. Communication between hardware and software is carried out via Modbus-RS-485/TCP-IP. PGCC is responsible for the control of the parking guidance system, the storage of historical data, the compilation of statistics, visualization of the current operation, and the communication with other systems. All configuration data, parking data, and statistics are stored in a SQL database. The ParkGard® Control Center works as a web server and can be operated worldwide on any PC via a web browser, provided the local PC is connected to the Internet.

Benefits of the ParkGard® Control Center (PGCC)

• Monitoring, control, and visualization of parking guidance systems
• Monitoring, control, and visualization of individual parking spaces
• Documentation of all relevant data
• Creating/exporting statistics
• Finding parking offenders – long-term or false parkers
• Detecting malfunctions in the system
• Integration of a compatible gas warning system in parking garages

Further details on MSR-Traffic products can be found in the current MSR-Traffic Online-Catalog.

From concept to the turnkey parking guidance system, MSR-Traffic offers innovative sensor technology that enables counting and single place detection of vehicles in indoor and outdoor applications. Drivers are quickly guided to the next available parking space via dynamic traffic control technology or via an app. In addition to the development, production, and sales of intelligent parking guidance systems, MSR also provides support in planning and installation on site.

About MSR-Traffic

MSR-Traffic is the manufacturer of state-of-the-art parking guidance systems for indoor and outdoor applications, from the idea to the turnkey parking guidance system. MSR-Traffic from Lower Bavaria offers innovative sensor technology that enables counting and single place detection of vehicles in indoor and outdoor applications. Drivers are quickly guided to the next available parking space via dynamic traffic control technology or an app. In addition to the development, production, and sales of intelligent parking guidance systems, MSR also provides support in planning and installation on site. If you have any questions, please send us an email or call us.

For more information see www.msr-traffic.de
