BG Drives in Germany develops and manufactures high-quality systems for the efficient, economical and fast control of access by persons and vehicles.

Our team has been engaged for over 25 years in the production of access control systems for pedestrians and road vehicles. The area of barrier and gate drive units and their control circuitry represents a particular core competence of our specialists.

Our products are designed and manufactured for use on demanding duties in continuous operation with heavy pedestrian and vehicle traffic. All our systems have been developed to provide a long service life with minimized power consumption.

BG Drives’ access solutions have proven their reliability in more than 5,000 installations and enjoy an excellent reputation among our customers.

Solutions

• Access and Exit Control Systems
• Access Control
• Barriers
• Car Access
• Car Park Control
• Controllers
• Directional Sensors
• Entry- and Exit Stations
• Gates
• High-Speed Doors
• Loops / Loop Detectors
• OEM solutions
• Parking Automation
• Sensors / Ultrasonic Sensor
• Service & support
• Ultrasonic Directional Sensors / Counting Sensors
• Vehicle Counting
• Vehicle Presence Detection Sensors

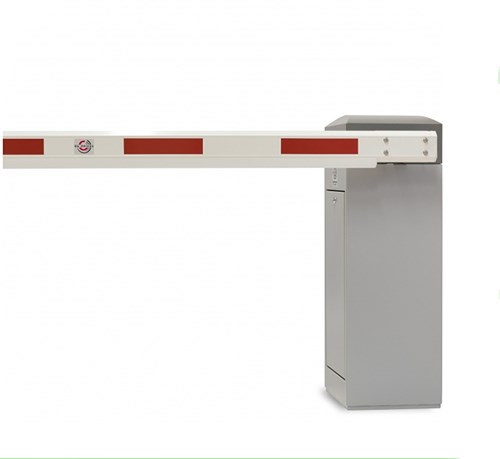

VEHICLE BARRIERS

AXpark PERFORMANCE barriers are all-round barriers with a wide range of possible uses, such as parking lots, parking garages, company entrances, residential complexes, or other areas where reliable control of vehicle traffic is required.

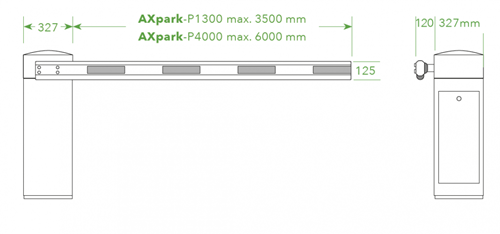

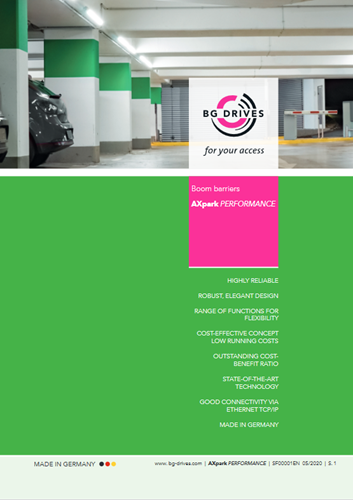

P1300 Barriers

• Up to 3.5 m lane width
• High security
• Rapid opening and closing times of 1.3 s / 1.8 s / 2.5 s
• Particularly suitable for parking lots, parking garages, company premises, gated communities, etc.
• Version with articulated boom possible
• Customized color scheme: on request
• Multifunctional controls:
• Configuration tool for PC2-channel
• loop detector
• Inputs:
• 8 x digital inputs
• Outputs:
• 6 x semiconductor outputs
• 6 x relay output
• Freely assignable input and output functions
• Interfaces (onboard)
• Ethernet
• RS232
• CAN
• Scope of supply
• The barriers are supplied with a complete range of functions and an integrated 2-channel detector.

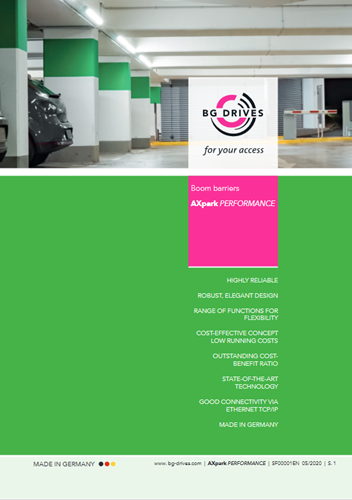

P4000 Barriers

• Up to 6 m lane width rugged construction
• Rapid opening and closing times of 4.0 s / 6.0 s / 8.0 s
• Particularly suitable for company gateways, logistic centers, gated communities, etc.
• Increased site security with optional boom skirt
• Customized color scheme: on request
• Multifunctional controls:
• Configuration tool for PC2-channel
• loop detector
• Inputs:
• 8 x digital inputs
• Outputs:
• 6 x semiconductor outputs
• 6 x relay outputs
• Freely assignable input and output functions
• Interfaces (onboard)
• Ethernet
• RS232
• CAN
• Scope of supply:
• The barriers are supplied with a complete range of functions and an integrated 2-channel detector.

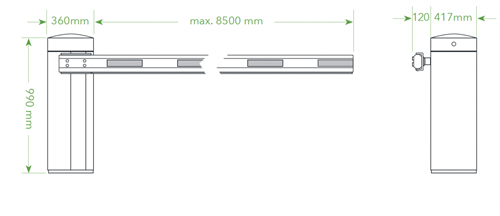

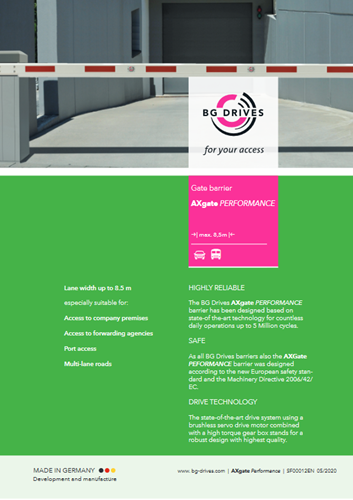

P6000 Barriers

• Up to 8.5 m lane width
• Increased site security with optional boom skirt
• Flexible opening and closing times 6.0 s / 9.0 s / 12.0 s
• Particularly suitable for company gateways, logistic centers, port facilities and multilane entrances
• Customized color scheme: on request
• Multifunctional controls
• Configuration tool for PC
• 2-channel loop detector
• Inputs: 8 x digital inputs
• Outputs:
• 6 x semiconductor outputs
• 6 x relay outputs
• Freely assignable input and output functions
• Interfaces (onboard)
• Ethernet
• RS232
• CAN
• Scope of supply
• The barriers are supplied with a complete range of functions and an integrated 2-channel detector.

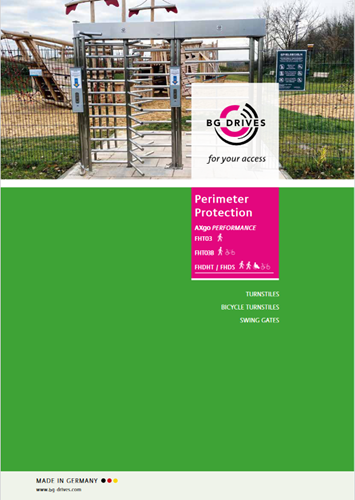

BICYCLE TURNSTILE

AXgo Performance FHT03B

•

  Completely in stainless steel (DIN grade 1.4301)
• Controlling site access for rider and bicycle
• Simple installation and commissioning
• Low operating forces for enhanced user safety
• Integral bicycle recognition
• FHT03B allows simultaneous access for rider and bike
• Variable options for extending access control
• Long service life
• No parts that wear out
• Simple commissioning and operation
• Easy implementation with control via volt-free contacts
• Standardized interfaces for great flexibility
• The housing is fabricated 100% in stainless steel.
• Low impact forces and a highly sensitive contact detection system give optimum protection for persons and their two-wheeled conveyances.
• Space-saving double systems
• Modular combination of equipment elements
• Long-lasting quality for use in buildings or on outdoor premises
• Low power consumption
• Installation in areas with aggressive environments possible
• Distances between moving and fixed components are dimensioned to that there is no risk of injury.
